Assembled tubes

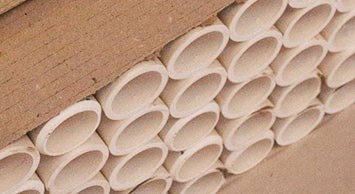

Ceramic pipes are indispensable components for industrial furnace manufacture in electric heating – but they’re also important for other uses and applications. Berghütten offers a wide selection of ceramic tubes in standard sizes available in stock. For special technical data, please refer to the following specifications.

Specifications of C 530, ceramic tube based on alumina (Al2O3), in line with DIN standard EN 60672-1.

Al2 O3 [%]75 – 76Aluminium oxide
Fe2 O3 [%]< 0,3Iron(III)-oxide
Density [g/mm3]2,55(density)
Water absorption in [Vol. %]9(water absorption)
Maximum flexural strength [N/cm2]50(bending strength)
Maximum operational temperature [°C]1260(operation temperature)
Elastic modulus [GPa]75(module of elasticity)
Thermal expansion up to 1000°C * [10-6 / °C]5,8(thermal expansion)
Thermal shock resistancevery good(thermal shock resistance)
Chemical resistancegood(chemical resistance)
Ø Tube
[mm]
Maximum
length
[mm]
110/951500
85/751600
70/583000
60/483000
50/403000
50/383000
50/381420
45/353000
40/303000
35/253000
32/223000
30/203000
25/181500
25/151500
25/151600
25/152500
25/153000
23/131600
20/151000
20/121500
18/121600
15/101000
15/71600
10/61000

If you need more information in this area, we would be happy to talk to you about our products. Send us an email, use the contact form or call us on +49 (0) 6074 855-0.

We are happy to advise you on our products.
