CeraSys heating systems – system components ready for installation
in various temperature classes and designs
Berghütten® offers ready-to-install heating modules in various temperature classes and designs under the name CeraSys

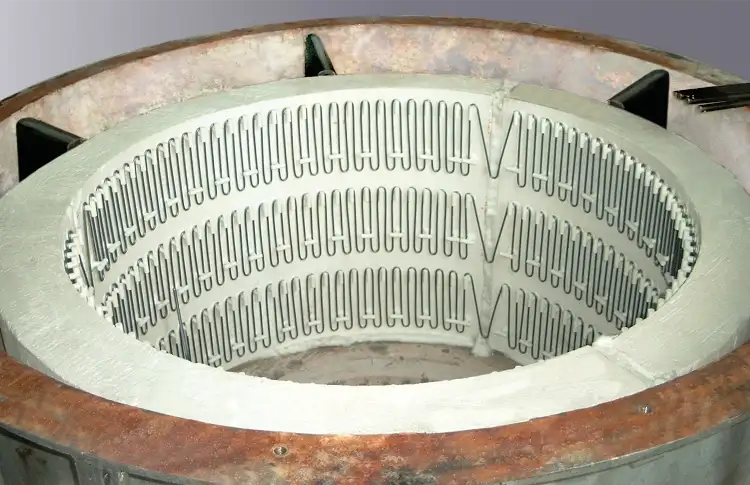

They are constructed from vacuum-formed, ceramic molded fiber parts made of aluminum silicate and aluminum oxide and an integrated electrical heating system. The insulation is also available with biosoluble fibers up to temperatures of 1,100 °C. Experience from real applications shows that CeraSys heating modules can reduce energy consumption by up to 30 % compared to a conventional furnace design.
CeraSys heating system
CeraSys 800
CeraSys 800 | CS – 800
| Max. Heatsealing band temperature: | 800 °C |
| Installable power: | 17 kW/m2 |
| System of heating: | tubular heating element |
| Fitting position: | any |
| Geometric form: | tube, plate. shell |
| Heater: | exchangeable |
CeraSys heating system
CeraSys 1150
CeraSys 1150 | CS – 1150
| Max. Heatsealing band temperature: | 1150 °C |
| Installable power: | 18 kW/m2 |
| System of heating: | coiled resistance wire |
| Fitting position: | any |
| Geometric form: | tube, plate. shell |
| Heater: | exchangeable |

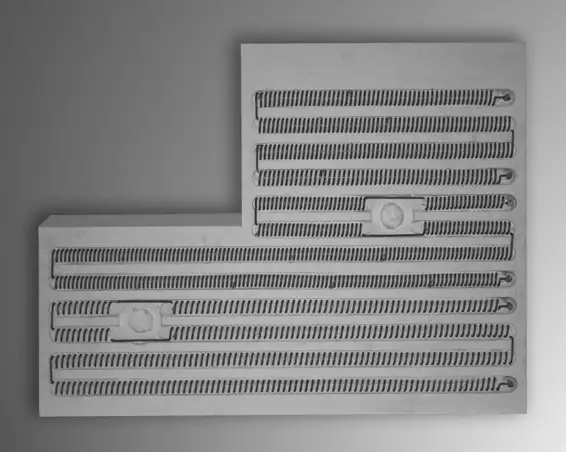

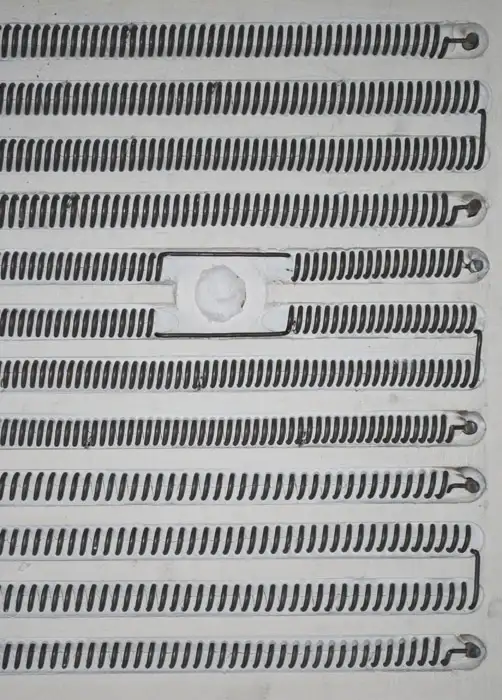

CeraSys 1150 (grooved plates):
Heating for the side walls of a magnesium crucible furnace. The total output of the crucible furnace is max. 60 kW and the furnace chamber temperature reaches 800° C. The crucible furnace has a capacity of 300 kg.
Special features: very high power density; 3 zones with different outputs.

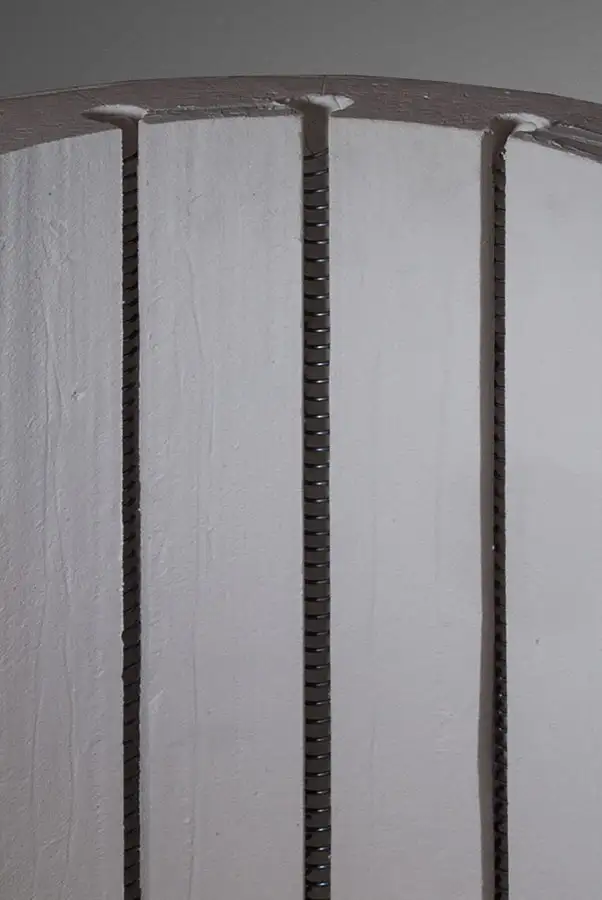

CeraSys heating system
CeraSys 1200
CeraSys 1200 | CS – 1200
| Max. Heatsealing band temperature: | 1200 °C |
| Installable power: | 30 kW/m2-800 °C, 18 kW/m2-1200 °C |
| System of heating: | coiled resistance wire |
| Fitting position: | side-wall or in the bottom |
| Geometric form: | tube, plate. shell |
| Heater: | exchangeable |
CeraSys heating system
CeraSys 1250
CeraSys 1250 | CS – 1250
| Max. Heatsealing band temperature: | 1250 °C |
| Installable power: | 45 kW/m2-800 °C, 20 kW/m2-1250 °C |
| System of heating: | resistance heater in meander-form |
| Fitting position: | roof, side-wall or in the bottom |
| Geometric form: | tube, plate. shell |
| Heater: | exchangeable |

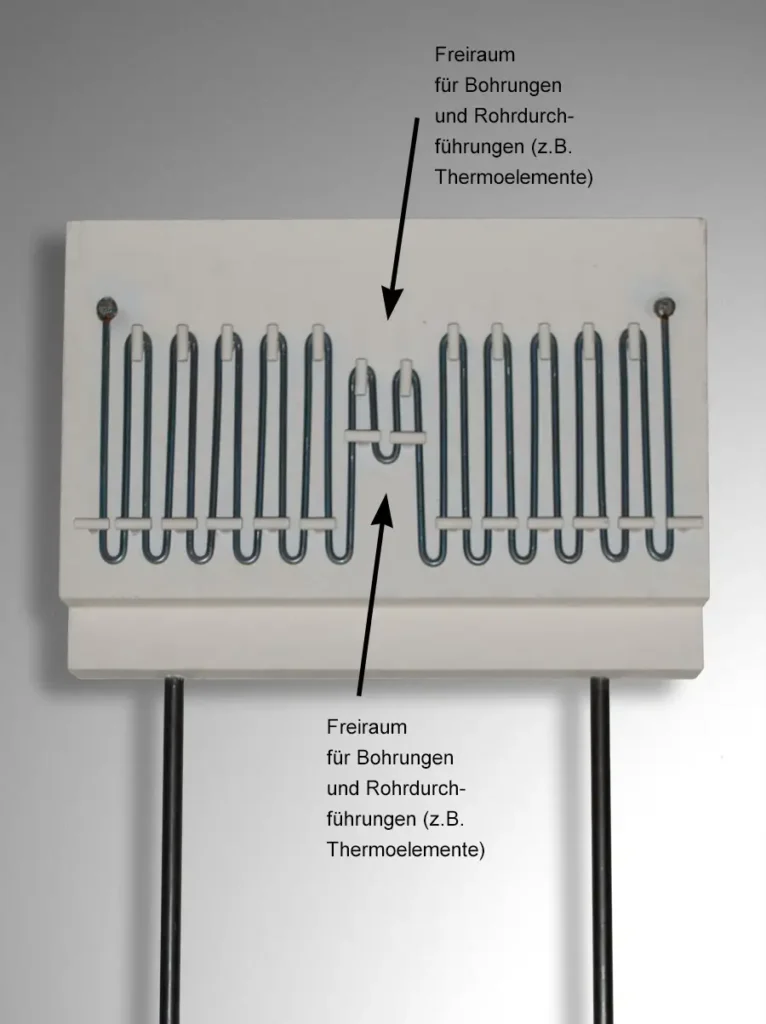

CeraSys 1250
The 2,100W, 2,500W and 4,200W meander plates shown here are used in a continuous furnace for hardening steel strip. The wall load is designed for an output of up to 32 kW/m² at a furnace chamber temperature of 1,200°C.
The specific shortenings of the meanders in the middle section are used for feed-throughs of additional thermocouples.
CeraSys heating system
CeraSys 1300
CeraSys 1300 | CS – 1300
| Max. Heatsealing band temperature: | 1300 °C |
| Operating voltage: | 230 V / 400 V Operating voltage |
| Dimensions: | Length: 200 mm - 1200 mm Inner diameter: 80 mm - 300 mm |
| Installable power: | 55 kW/m2-800 °C, 30 kW/m2-1300 °C |
| System of heating: | coiled resistance wire |
| Fitting position: | any |
| Geometric form: | tube |
| Heater: | not exchangeable |
| Optional: | Thermocouple bifilar winding Connection tapes available as accessories |
CS - 1300 Tubular elements
The CS – 1300 tubular heating elements are designed for maximum element temperatures of 1300 °C and are operated with a voltage of 230V or 400V.
The sizes range from 200 mm to 1200 mm in length and are between 80 mm and 300 mm in internal diameter. The windings are divided into different heating zones, which can be controlled separately if required.
To ensure a secure hold during furnace operation, the heating coils are fixed in the furnace with ceramic combs. To monitor the furnace chamber temperature, the CS – 1300 tubular heating elements can optionally be fitted with a hole to accommodate thermocouples. In addition, electric magnetic fields can be compensated with a bifilar winding of the element in order to avoid possible structural changes in metallic and magnetic furnace melts.
Connection tapes are available as accessories for connecting the system, which are led out radially at one end of the pipe.
CeraSys heating system
CeraSys 1325
CeraSys 1325 | CS – 1325
| Max. Heatsealing band temperature: | 1325 °C |
| Installable power: | 55 kW/m2-800 °C, 30 kW/m2-1300 °C |
| System of heating: | coiled resistance wire |
| Fitting position: | wall |
| Geometric form: | plates |
| Heater: | exchangeable |
CeraSys heating system
CeraSys 1325
CeraSys 1325 | CS – 1325
CeraSys heating system
CeraSys 1500
CeraSys 1500 | CS – 1500
| Max. Heatsealing band temperature: | 1500 °C |
| Installable power: | over 30 kW/m2 at 1500 °C |
| System of heating: | bar shaped |
| Fitting position: | to be discussed |
| Heater: | Silicon Carbide |
CeraSys 1500
Example application for the CeraSys 1500
Tube heating elements for a test furnace, consisting of ceramic fibre at a classification temperature of 1400°C.
External dimensions: L 260 x D 180 mm, with SER Type SiC heating element: dimensions 300 x 150 x 25 mm, heated zone length 150 mm, operating temperature 1100°C.
Not seen in the picture of this product use are the ceramic floor endplates, dimensions D 180 x 20 mm, a temperature-sensing element and the secondary insulation of 100 mm thickness.
The power output is 1200 watts.
CeraSys heating system
CeraSys 1650
CeraSys 1650 | CS – 1800
| Max. Heatsealing band temperature: | 1650 °C (short-term max. peak temperature) |
| Installable output: | over 30 kW/m2 at 1650 °C |
| System of heating: | bar shaped |
| Fitting position: | to be discussed |
| Heateing: | Molybdenum disilicide |
CeraSys 1650 (Moly-D tubular elements with fibreboard backing):
Heating of a conduit sheet through glasswork between the furnace and the finishing.
Element temperature 1630 °C.

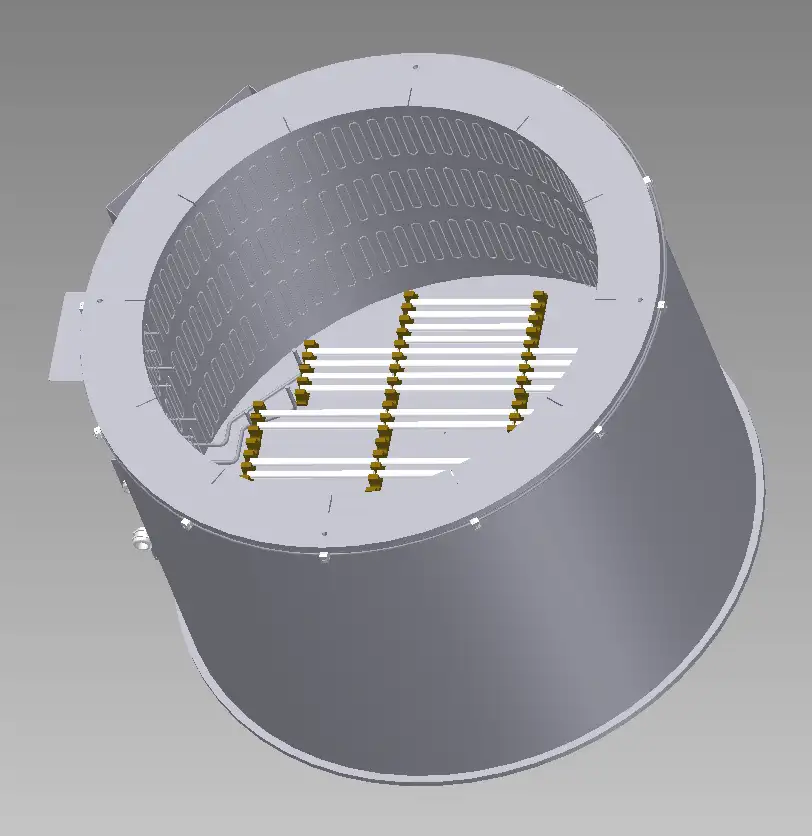

Our services
- We support you in the calculation and design of heating elements
- Design support for systems and industrial furnaces
- Assembly of the system components
- Measurement and remanufacture of defective heating elements
